160kVA Rated Capacity Stainless Steel Sink Welding Machine with CNC 3-Axis Servo Control and Medium-Frequency Inverter (MFDC) Seam Welding

160kVA stainless steel sink welder

CNC 3-axis servo welding machine

MFDC seam welding machine

उत्पत्ति के प्लेस:

CE/CCC/ISO

ब्रांड नाम:

HWASHI

प्रमाणन:

CE/CCC/ISO

हमसे संपर्क करें

बोली मांगें

उत्पाद का विवरण

आवेदन:

रसोई सिंक के लिए वेल्डिंग

रेटेड क्षमता:

160 केवीए

गठन का समय:

1 मिनट

एकल सकल वजन:

65.000 किग्रा

इनपुट शक्ति:

एकल-चरण 380V10% 50 हर्ट्ज

प्रयोग:

सिंक वेल्डिंग

ठंडा पानी की खपत:

1000 ली/घंटा

मानक:

CE/CCC/ISO

भुगतान और शिपिंग की शर्तें

न्यूनतम आदेश मात्रा

1 सेट

मूल्य

विनिमय योग्य

पैकेजिंग विवरण

समुद्र लकड़ी के पैकेज

प्रसव के समय

7-30 कार्य दिवस आपके भुगतान प्राप्त होने के बाद

भुगतान शर्तें

एल/सी,टी/टी

आपूर्ति की क्षमता

प्रति माह 50 सेट

संबंधित उत्पाद

वीडियो

160kVA Rated Capacity Stainless Steel Sink Welding Machine with CNC 3-Axis Servo Control and Medium-Frequency Inverter (MFDC) Seam Welding

सबसे अच्छी कीमत पाएं

वीडियो

स्टेनलेस स्टील सिंक वेल्डिंग मशीन रसोई सिंक विनिर्माण अनुप्रयोगों के लिए स्थिर वेल्ड प्रदान करने के लिए डिज़ाइन किया गया

सबसे अच्छी कीमत पाएं

वीडियो

Hwashi Inox SS304 सीएनसी 3 अक्ष नियंत्रण सिंक सीम वेल्डिंग मशीन 160kVA नामित क्षमता और सीई/सीसीसी/आईएसओ प्रमाणन के साथ

सबसे अच्छी कीमत पाएं

वीडियो

Hwashi Inox SS304 सीएनसी 3 अक्ष नियंत्रण सिंक सीम वेल्डिंग मशीन 160kVA नामित क्षमता और सीई/सीसीसी/आईएसओ प्रमाणन के साथ

सबसे अच्छी कीमत पाएं

हमसे संपर्क करें

+8613380655800

marketing@hwashi.com

अब संपर्क करें

उत्पाद का वर्णन

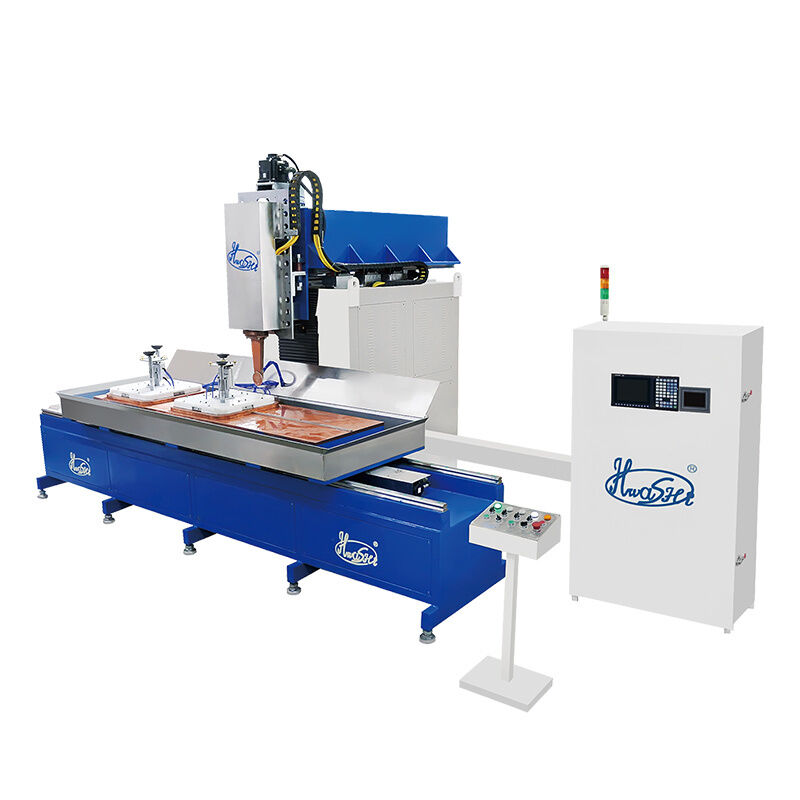

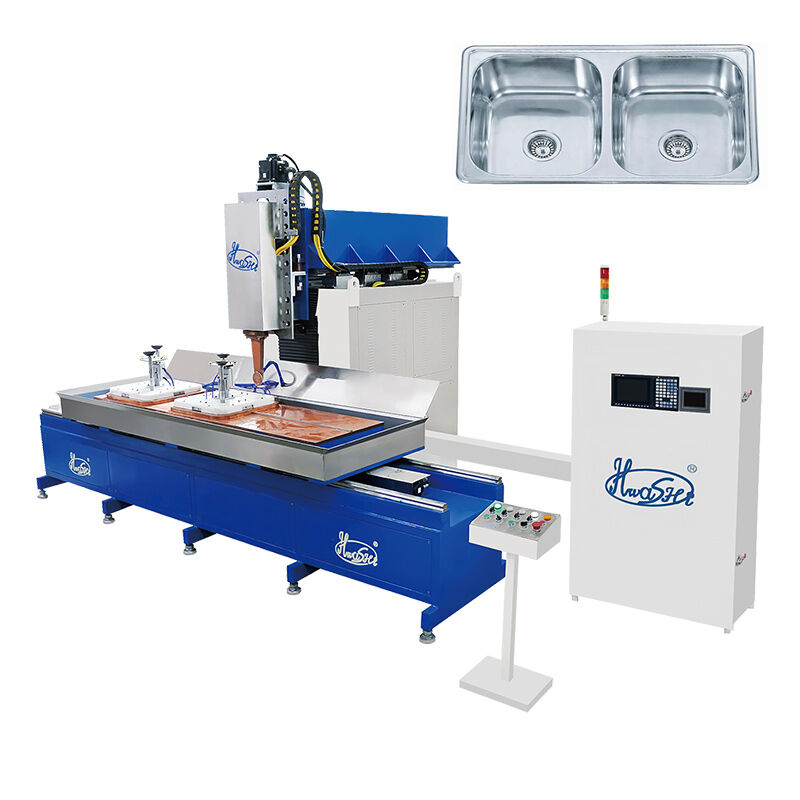

Stainless Steel Sink Welding Machine

Designed to provide consistent, high-quality welds for kitchen sink manufacturing applications, delivering flawless, high-strength seams for stainless steel sink bowls.

Application Overview

This specialized automated solution addresses the unique challenges of welding thin-gauge stainless steel (0.8-2mm thickness), combining precision engineering with intelligent control to redefine seam quality and production efficiency.

Key Advantages

CNC 3-Axis Servo Control

Japan Mitsubishi servo motors control X-axis (mold movement), Y-axis (electrode vertical travel), and A-axis (360° electrode rotation). Stores up to 95 welding programs for quick switching between sink models.

Medium-Frequency Inverter (MFDC) Seam Welding

2nd-generation MFDC power source with 30%+ more energy efficiency than conventional AC. Features fast DC current rise, stable output, and minimal spatter with current control accuracy of ±1%.

Large Copper Flat Table Electrode

Specially designed large flat copper platform ensures stable, uniform conductivity and minimizes heat distortion on thin stainless steel sheets (0.8–1.5mm).

360° Rotating Welding Wheel

Servo-controlled A-axis enables 360° rotation of the welding roller, seamlessly welding R-corners, straight edges, and curved profiles in a single pass.

Automatic Moving Welding Table

Synchronized operation with X-axis travel ≥2,500 mm, Y-axis travel ≥750 mm, and Z-axis travel ≥350 mm for full coverage of various sink sizes.

Water-Cooled System for Continuous Production

Water-cooled transformer, SCR, and electrode assembly enable extended continuous operation without overheating, maintaining stable weld quality.

Workflow Process

Operator places sink bowl onto the fixture on the moving table
Table automatically moves to welding position
Welding roller follows pre-programmed path, creating continuous sealed seam
Table returns to loading position for finished sink removal
Next cycle begins immediately with near-zero idle time

Applications

Application	Details
Kitchen Sink Seam Welding	Single bowl, double bowl, triple bowl — square, rectangular, round
Handmade Sink R-Corner Welding	Precise corner welding for premium handmade sinks
Stainless Steel Basin Welding	Wash basins, prep sinks, utility sinks
Commercial Kitchen Sinks	Large-format sinks for restaurants, hotels, hospitals
Stainless Steel Container Welding	Sealed containers, tanks, housings requiring watertight seams

Technical Specifications

Model	WL-FS-AC75K	WL-FS-MF75K	WL-FS-MF100K
Input Voltage	Three-phase 380V±10% 50Hz	Three-phase 380V±10% 50Hz	Three-phase 380V±10% 50Hz
Input Power	75KVA	75KVA	100KVA
Rated Input Current	115A	115A	150A
Rated Duty Cycle Rate	50%	50%	50%
Max Secondary Floating Voltage	DC9.75V	DC9.75V	DC11.6V
Secondary Max Short Circuit Current	26500A	26500A	28000A

Additional Features

Intelligent microcomputer single piece controller with pure digital setting and LED digital display
Automatic current compensation during voltage fluctuations
High-precision silicon controlled rectifiers from West Germany, IXYS and IR (United States)
Advanced mercury conductive technology for transmission tile axis
Welding roll wheel made from Japanese alloy copper material
Transformer using high-purity Japanese silicon steel sheets
Mosaic connection between welding mold and machine for easy assembly

Competitive Advantages

Leading Brand: HWASHI is the premier resistance welding brand in China for 20 years
Customized Service: Design and develop welding machines according to specific requirements
Genuine Product Quality: 12-month warranty, ISO9001:2000 and China Compulsory Certification compliant
After-Sales Support: 24-hour technical support by email with professional team
Quick Delivery: Just-in-time delivery service
Customer Responsiveness: Prompt response with customer satisfaction as primary goal
